SPECIFICATIONS

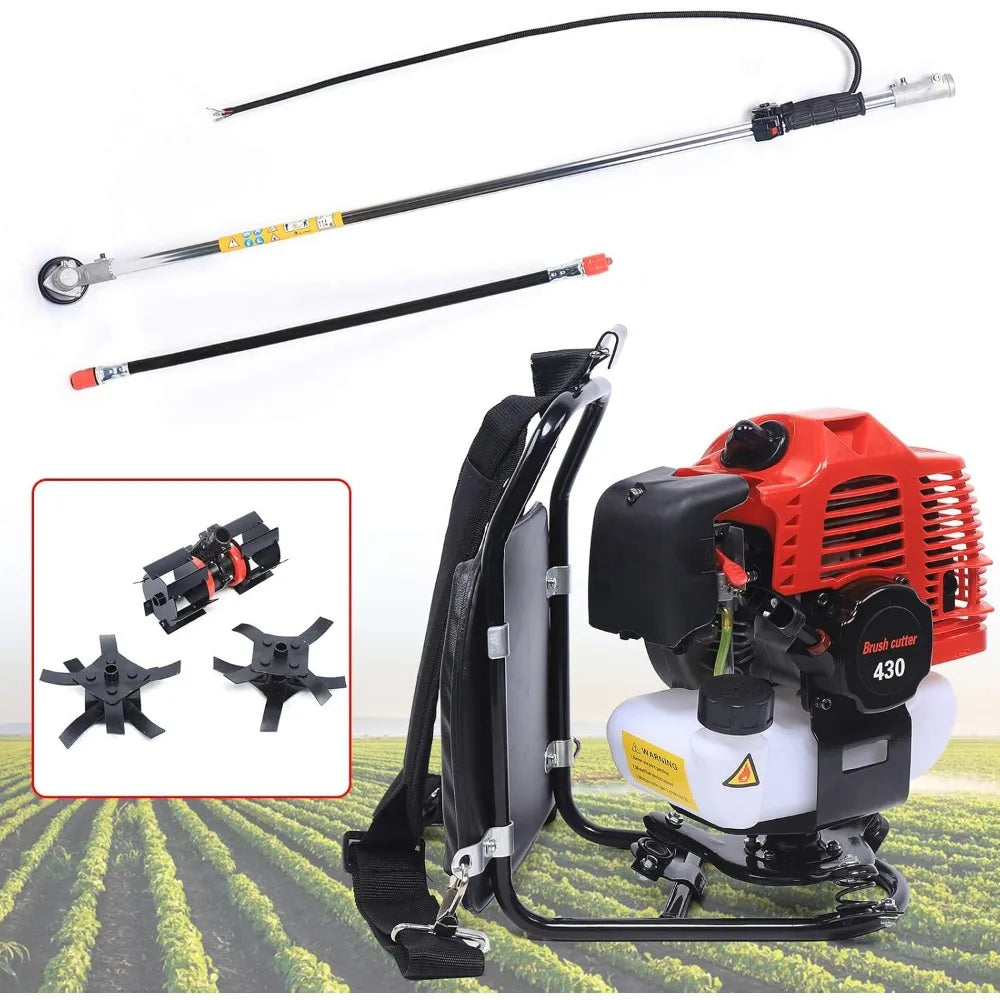

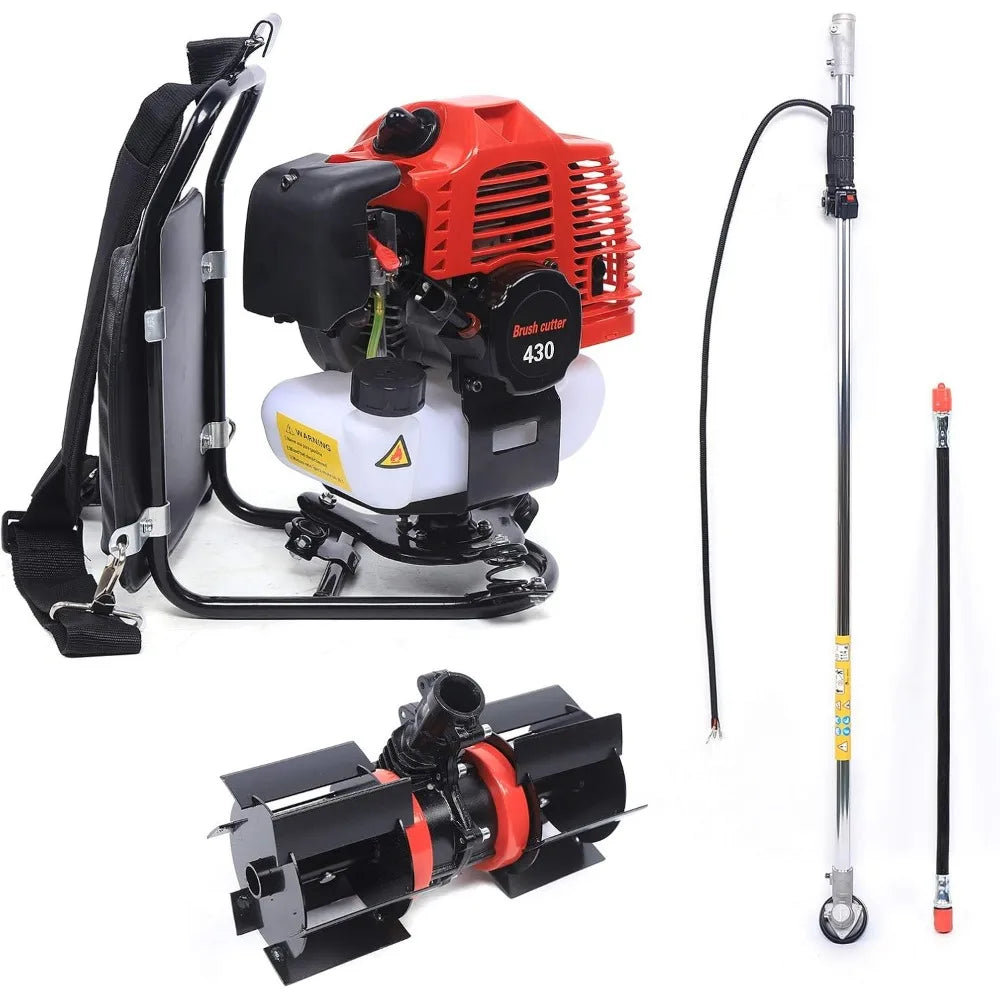

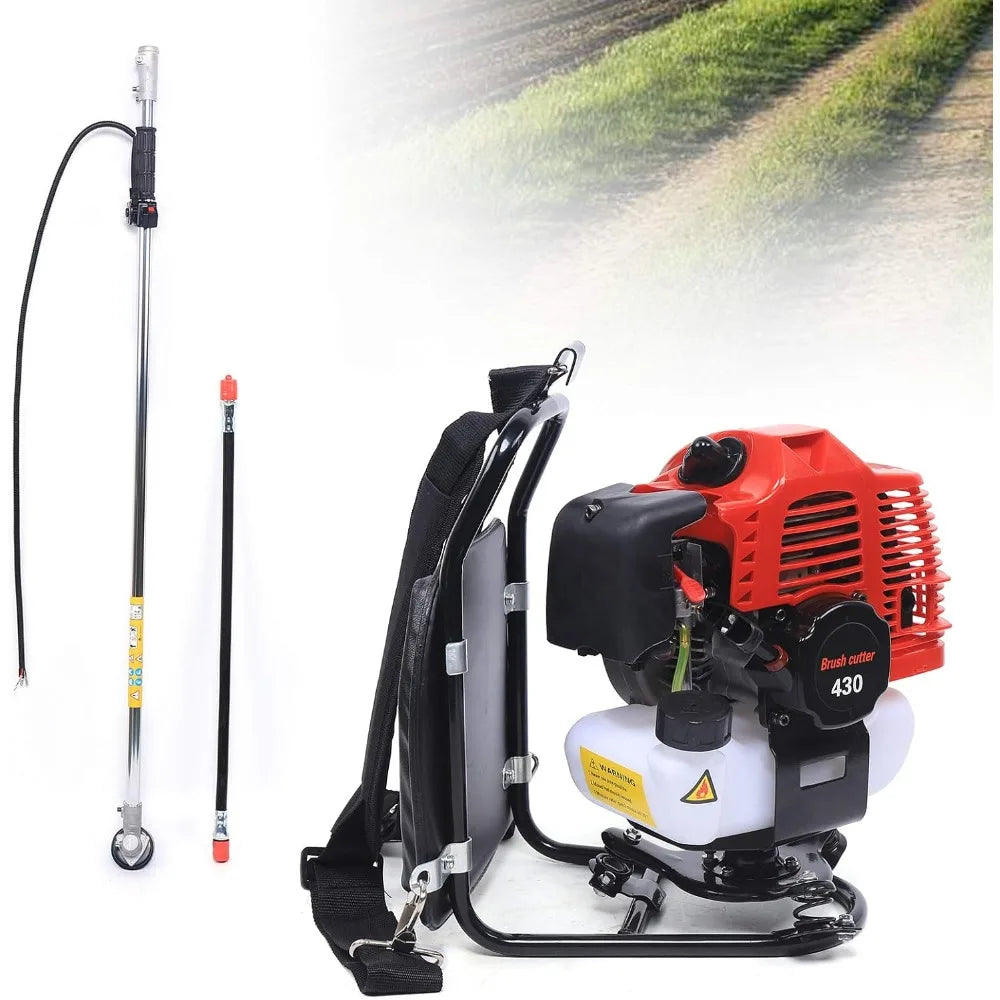

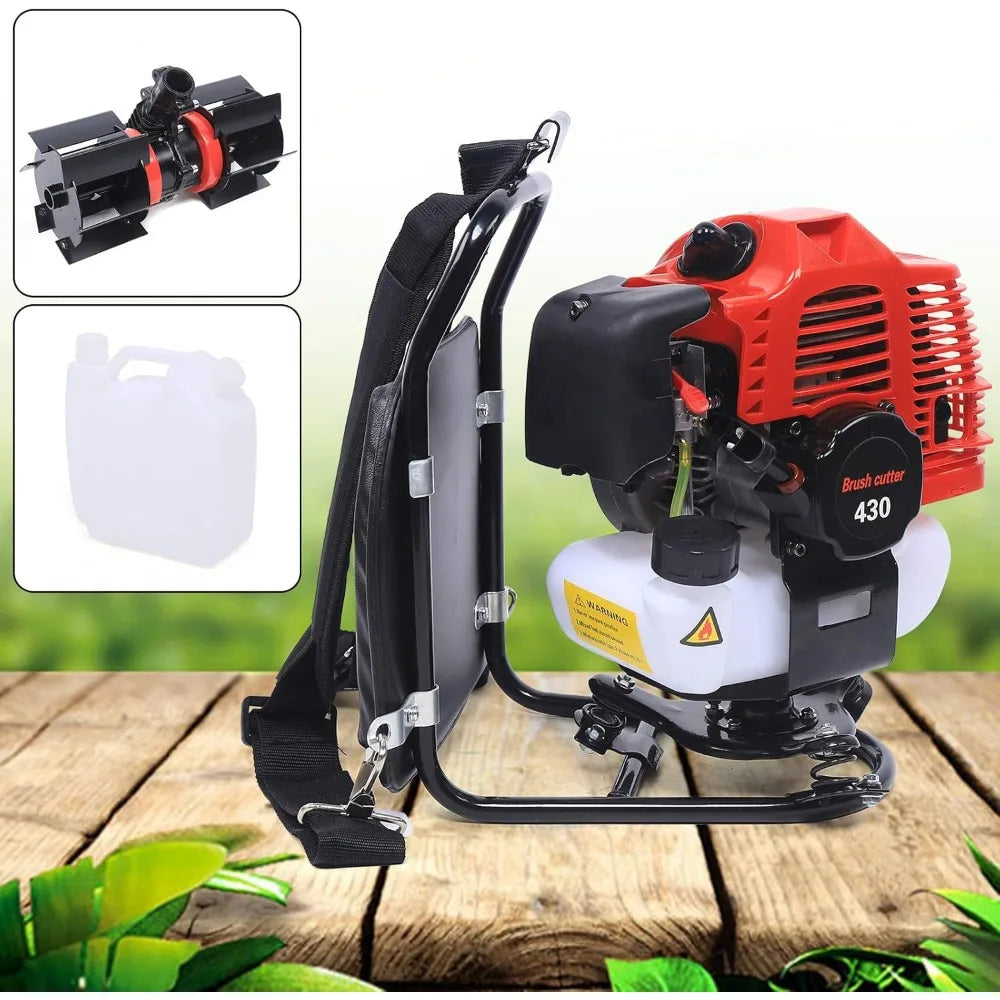

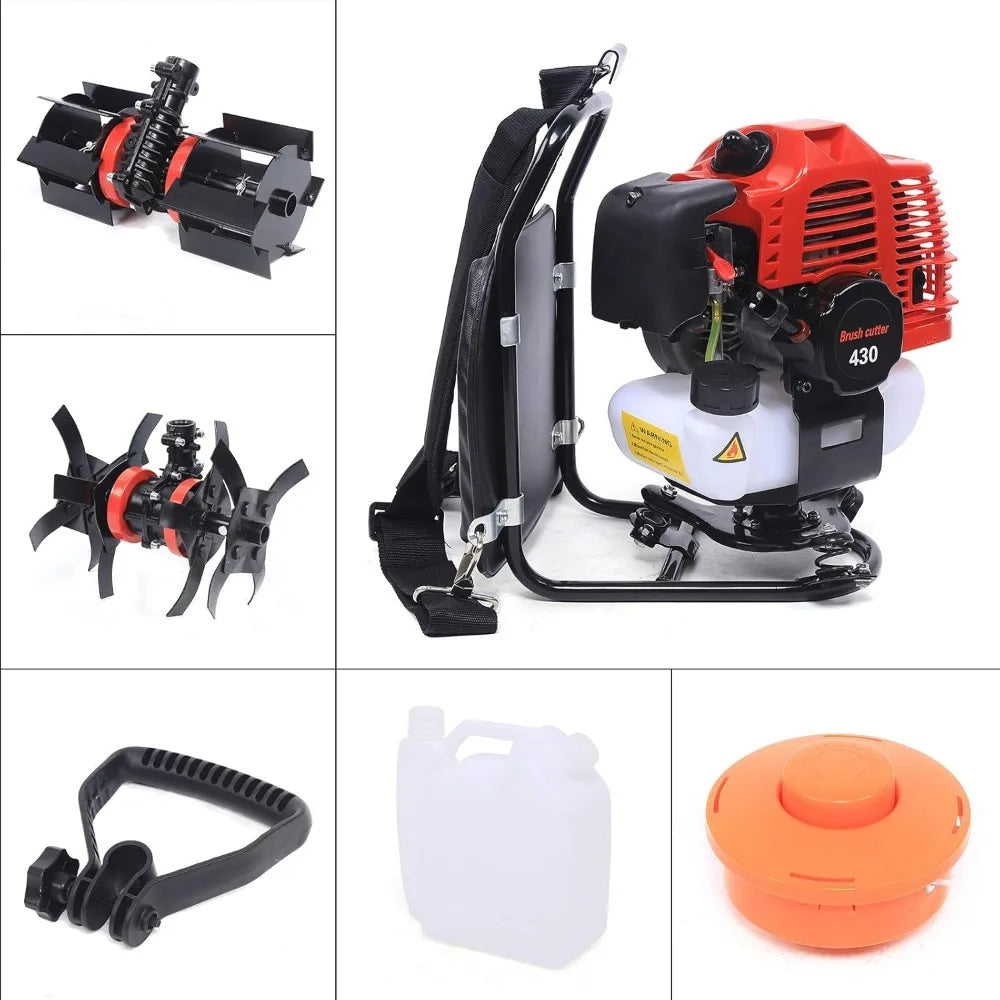

Product Description

Application

It is suitable for weeding, scarifying, and cutting (with a saw blade), and can be used in parks, residential buildings, shopping malls, lawns, farmlands, etc.

Specification

Host Model: TBG430

Machine Head Model: 1E40F-5

Blade Model: 2T

Color: Black

Material: PP, Aluminium Alloy, Rubber

Style: Modern

Assembly Required: Yes

Engine Type: Single Cylinder Air-cooled Two-stroke, Gasoline Engine

Engine Power: 1.25kw (1.7HP)

Product Description

Application

It is suitable for weeding, scarifying, and cutting (with a saw blade), and can be used in parks, residential buildings, shopping malls, lawns, farmlands, etc.

Specification

Host Model: TBG430

Machine Head Model: 1E40F-5

Blade Model: 2T

Color: Black

Material: PP, Aluminium Alloy, Rubber

Style: Modern

Assembly Required: Yes

Engine Type: Single Cylinder Air-cooled Two-stroke, Gasoline Engine

Engine Power: 1.25kw (1.7HP)

Engine Idle Speed: 3200rpm

Working Speed: 4500-8500rpm

Fuel Mixing Ratio: 1:25 (2-stroke Engine Oil: Gasoline)

Fuel Tank Capacity: 1000ml/0.26gal

Displacement: 43cc

Noise: About 105dB

Carburetor Type: Diaphragm

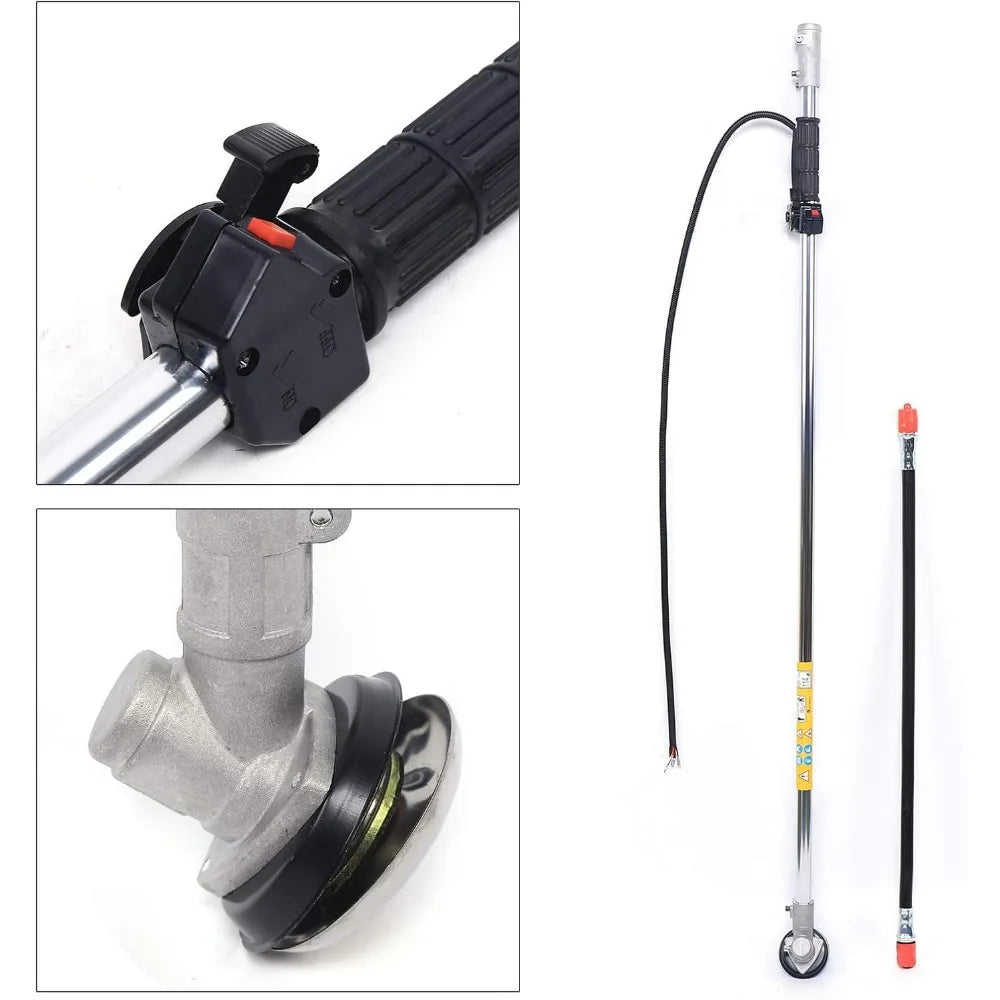

Operating Lever Length: 153cm/60inch

Operating Lever Diameter: 26mm/1inch

Number of Drive Shaft Spline Teeth: 9T

Inner Drive Shaft Diameter: 8mm/0.3inch

Blade Length: 12inch/30cm

Weeding Wheel Width: 27cm/10inch

Ripper Wheel Width: 32cm/12inch

ngine Idle Speed: 3200rpm

Working Speed: 4500-8500rpm

Fuel Mixing Ratio: 1:25 (2-stroke Engine Oil: Gasoline)

Fuel Tank Capacity: 1000ml/0.26gal

Displacement: 43cc

Noise: About 105dB

Carburetor Type: Diaphragm

Operating Lever Length: 153cm/60inch

Operating Lever Diameter: 26mm/1inch

Number of Drive Shaft Spline Teeth: 9T

Inner Drive Shaft Diameter: 8mm/0.3inch

Blade Length: 12inch/30cm

Weeding Wheel Width: 27cm/10inch

Ripper Wheel Width: 32cm/12inch
